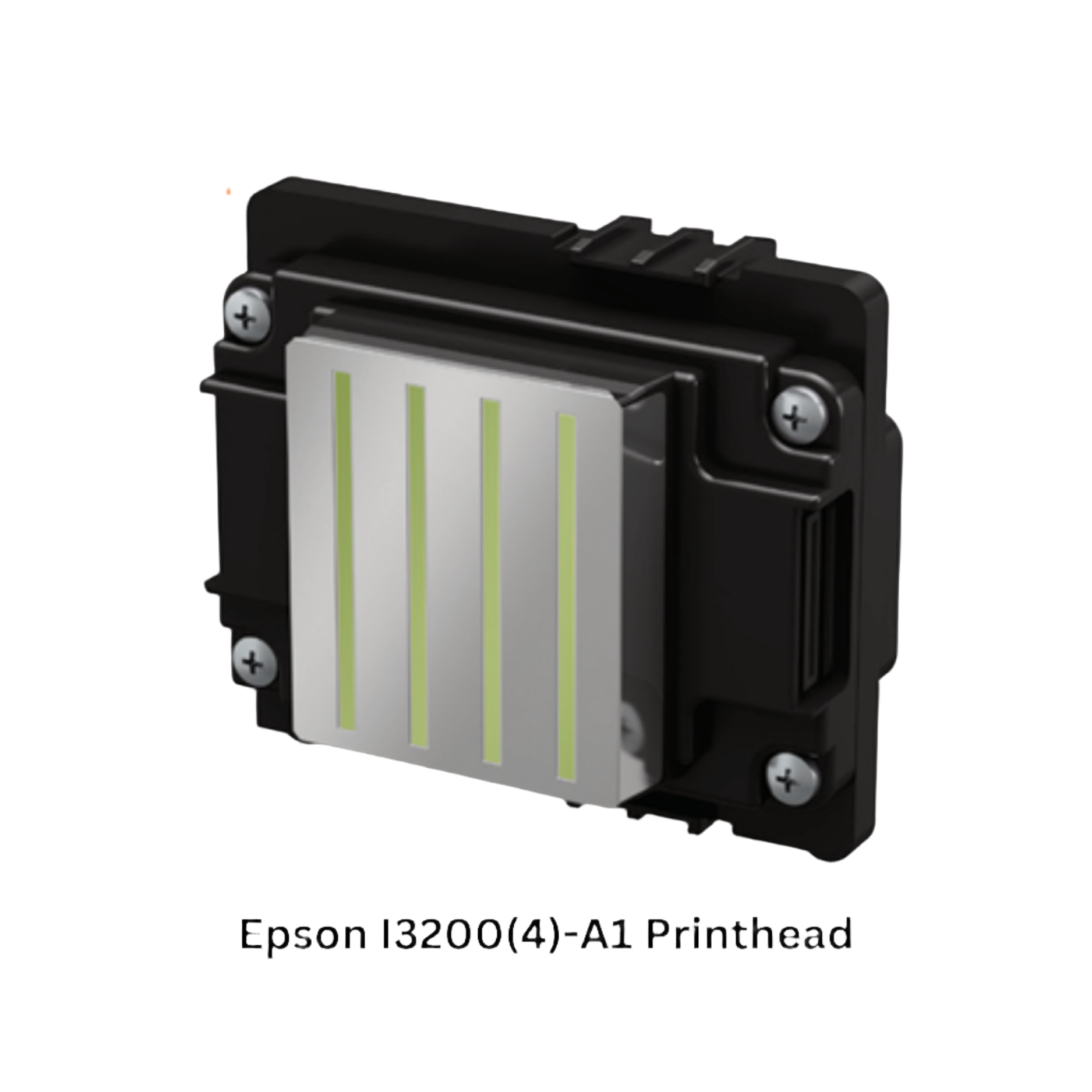

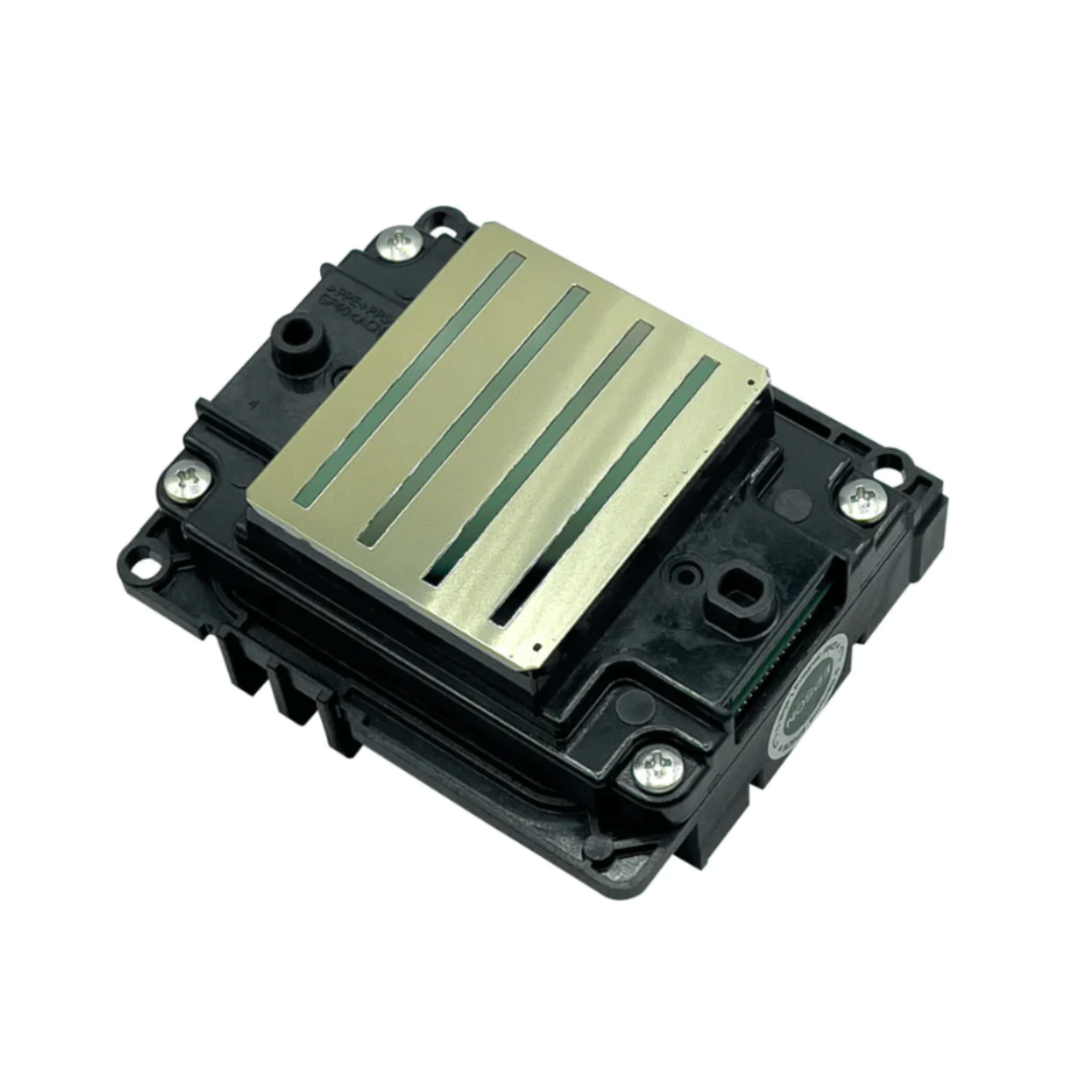

Epson I3200(4)-A1 (Aqueous) DTF Printhead

Introducing the Epson I3200-A1 Water: a budget-friendly 1.33-inch-wide MEMs head series engineered to deliver exceptional productivity and image quality, boasting a high-density resolution of 600dpi. Tailored for water-based inks, this printhead comes equipped with a built-in manifold.

Structurally identical, the Epson I3200-A1 printhead features 8 rows of 400 nozzles. However, it's crucial to note that they are not interchangeable; each printer is designed to accommodate a specific type of printhead.

• The Epson I3200 supports up to 4 colors, featuring 4 inputs on the manifold to connect dampers. Each color is emitted by a pair of nozzle rows.

Please be aware that due to the nature of DTF inks, once installed, we cannot accept returns, exchanges, or refunds. All sales are final.

Specifications:

• Ink Type: Aqueous
• Printhead Type: PrecisionCore MicroTFP
• Dimensions (W x D x H): 69.1 x 59.4 x 35.6 mm
• Weight: 82g
• Number of Nozzles: 3200
• Nozzle Pitch/Nozzle Row: 1/300 inch
• Nozzle Resolution: 300 noi/row 600 npi/2 rows
• Max. Number of Color Inks: 4 colors
• Effective Print Width: 33.8 mm (1.33 inches)
• Droplet Ejection Performance:
  • Binary: 6 pl at 43.2 kHz
  • 3 Levels Grey Scale: 6.3, 12.3 pl at 21.6 kHz
  • 4 Levels Grey Scale: 3.8, 6.1, 9.4 pl at 21.6 kHz
• Viscosity Range: 3-4 mPa·s
